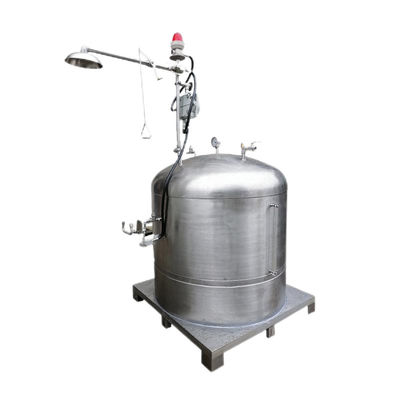

Forklift Mobile Eyewash Station and Safety Shower with Temperature Control

Forklift Mobile Eyewash Station and Safety Shower with Temperature Control

1. Advantages and Disadvantages
   • Advantages: The technical specifications comply with the latest national standards. It is portable and mobile, allowing it to be moved to wherever it is needed.
   • Disadvantages: To meet the national standard of continuous use for 15 minutes, the cost and construction price are relatively high.
2. Design Pressure: 0.6 MPa.
3. Operating Pressure: 0.20–0.40 MPa.
4. Material: 304 stainless steel.
5. Tank Specifications:
   • Thickness: 4 mm.
   • Capacity: ≥1500 L.
   • Diameter: 1308 mm.
   • Pallet Dimensions: 1308 mm × 1308 mm × 100 mm.
6. Safety Valve: Automatically releases pressure when the tank pressure exceeds the set value to ensure safe use.
7. Pressure Limiting Device: Ensures the inflation pressure remains within the specified range. The eyewash and shower can be used continuously for 15 minutes.
8. Eyewash and Shower Features:
   • Eyewash Flow: ≥11.4 L/min. Water flows from the center to the sides to rinse the eyes, with multiple nozzles for facial rinsing.
   • Shower Flow: ≥76 L/min. Showerhead diameter: ≥510 mm.
9. Drainage Device: A drainage port is installed at the lowest point of the tank.
10. Level Indicator: The tank is equipped with a level display scale.
11. Audible and Visual Alarm: A 24V audible and visual alarm is activated when the eyewash station is in use.
12. Explosion-Proof and Protection Rating:
    • Explosion-Proof Rating: Exd II CT6 Gb.
    • Protection Rating: IP65.
13. Glow-in-the-Dark Signage: Features luminous display signs for visibility in low light.
14. Mobility: The forklift can move the station to any location as needed.
15. Optional Features:
    • Electric Heat Tracing: For the tank to ensure year-round usability.
    • Electric Heating: To maintain a constant water temperature of 25-35°C, suitable for human use and compliant with the latest American standards.
    • Automatic Air Pump: Built-in pump that automatically inflates the tank when pressure drops below the set value; the water supply lasts until empty.
    • Tank Insulation: Additional insulation and protective layers can be added to the tank exterior.
